60x60 slim cassette SMMSu b/w1

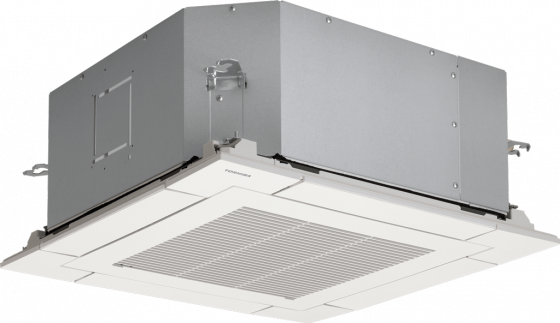

60x60 slim cassette SMMSu b/w

EURO-GRID INNOVATION

4-way Euro-grid cassette for combination with VRF outdoor units from the MiNi-SMMS-e, SMMS-e, SMMS-u, and SHRM-e model series. Perfect look in the ceiling grid, available in six capacity levels from 1.7 to 5.6 kW.

Highlights

62 x 62 cm panel without grid overhang Customizable air distribution features Occupancy sensor option
  • Energy efficiency class

    n.A

  • Sound power level

    44 - 62 dB(A)

  • Energy efficiency class

    n.A

  • Sound power level

    44 - 62 dB(A)

Sound pressure level (low/med/high)

29 - 47 dB(A)

Heating capacity

1,90 - 6,30 kW

Product benefits

60x60 slim cassette SMMSu b/w

  • High energy efficiency
  • High-performance heat exchanger
  • Self-cleaning function
  • Low-noise, 5-step fan
  • Individual louver function
  • 360° airflow
  • Occupancy sensor option
  • Auto diagnostic system
  • 4 independent, controllable louver flaps
  • Optimal air distribution, even in high spaces
  • Easy-to-remove, washable dust filter
  • Up to 4 indoor units can be connected to one outdoor unit
  • Optional WiFi control via smartphone, tablet, or PC
  • Low unit overall height of only 256 mm
  • Slim exhaust panel with a height of only 12 mm
  • Integrated drain pump with a discharge head up to 85 cm
  • Receiver for infrared remote control can be integrated
  • Can be combined with all cable remote controls
  • Automatic restart after power blackout adjustable

Performance data

60x60 slim cassette SMMSu b/w

  • Dimensions (HxWxD)

    Dimensions (HxWxD)
    256 x 575 x 575 mm

  • Airflow

    Airflow
    365 - 840 m³/h

Cooling

  • Sound pressure level (low/med/high)

    Sound pressure level (low/med/high)
    29 - 47 dB(A)

  • Cooling capacity

    Cooling capacity
    1,70 - 5,60 kW

Heating

  • Heating capacity

    Heating capacity
    1,90 - 6,30 kW
