Standard cassette SL R32
THE 360° CLASSIC
- Indoor unit
- Cassette unit
- Kältemittel R32
Four-way standard cassette for RAV single-room systems for combination with Digital-Inverter CLASSIC, Digital-Inverter, Super-Digital-Inverter, and Digital-Inverter BIG outdoor units for refrigerant R32. Individual comfort, even for large spaces with high capacity requirements. Available in six capacity sizes from 5.0 to 14.0 kW.
Highlights
SL »speed line« feature update Outstanding efficiency External fresh air supply possible Optional FLAT-panel Extensive air filter & control options Standard cassette SL R32, Kältemittel R32-
n.A
-
43,00 - 60,00 dB(A)
Product benefits
Standard cassette SL R32
- Very high energy efficiency
- Various options are possible with FLAT panel: Plasmafilter, PM 2.5 filter, occupancy sensor, IR-receiver-kit
- High-performance heat exchanger
- Self-cleaning function dries the heat exchanger after operation
- Low-noise 3-stage fan
- Quiet function
- Auto diagnostic system
- Optimal air distribution up to room height of 4.6 m
- Easy-to-remove, washable dust filter
- Optional WiFi control via smartphone, tablet, or PC
- External fresh air supply possible up to 15% of the nominal airflow
- Integrated drain pump with discharge head up to 85 cm

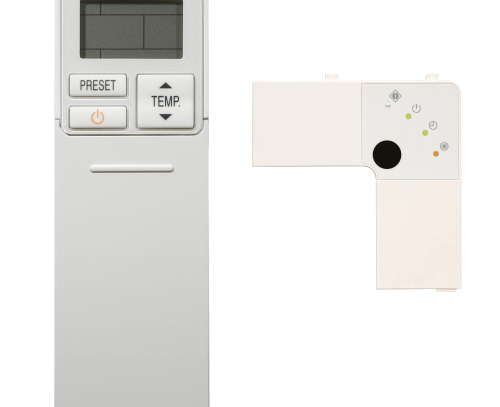

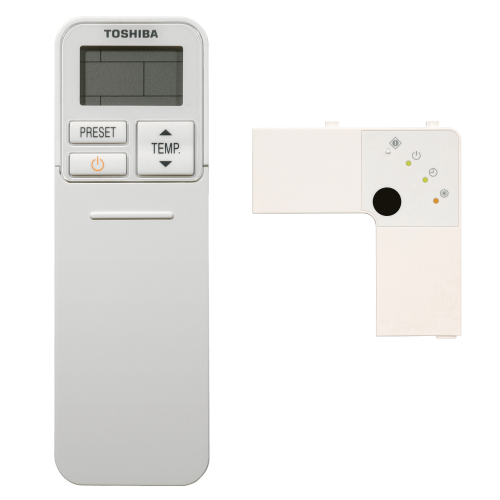

- Receiver for infrared remote control can be integrated
- Can be combined with all cable remote controls
- Can be integrated into VRF control systems via a TCC / TU2C link
- Compatible with TU2C link system bus
- Automatic restart setting after power outage
- Optional redundancy box available
- Redundancy function
- Free-Cooling control
- Support for Secondary Heating
- Air Discharge Temperature Display
- Draft Prevention Control
- Power Shift
Performance data
Standard cassette SL R32
-
Dimensions (HxWxD)
319 × 840 × 840 - 319 x 840 x 840 mm -
Airflow
780,00 - 2130,00 m³/h
Cooling
-
Cooling capacity
5,00 - 14,00 kW -
Energy efficiency class
- A+ -
Sound pressure level (low/med/high)
28,00 - 45,00 dB(A)
Heating
-
Heating capacity
5,30 - 16,00 kW
