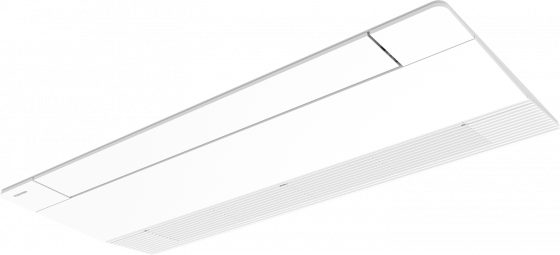

1-way FLAT cassette SMMSu
DESIGN CASSETTE
1-way FLAT cassette for combination with VRF outdoor units of the Mini-SMMS-e, SMMS-e, SMMS-u and SHRM-e series (size 003 only for SMMS-u, size 005 not for Mini-SMMS). Perfect for high demands on indoor air quality and energy efficiency. Available in nine capacity levels from 0.9 to 8.0 kW.
Highlights
30 mm flat design panel Lowest installation height of only 150 mm AIR Purifier-Kit optional Occupancy sensor optional-
n.A
-
33 - 46 dB(A)
-
n.A
-
33 - 46 dB(A)
Product benefits
1-way FLAT cassette SMMSu
- High energy efficiency
- High performance heat exchanger
- Whisper 3-speed fan
- Quiet function
- Occupancy sensor option for enhanced energy savings
- Auto diagnostic system
- Optimal air distribution even in high rooms
- Easily removable, washable dust filters
- Accessory board TCB-PCUC2E for external analog & digital control available
- Optional WIFI control via smartphone, tablet, PC
- Washable dust filters that cover the entire heat exchanger
- Special coating of the heat exchanger fins
- Self-cleaning function dries the heat exchanger after the end of operation
- Plasmafilter option: effectively neutralizes particles in the range of fine dust, pollen, mold spores and viruses, filters up to 85% of PM 2.5 particles in 2 hours. Contains a PM 1.0 particle sensor with 4-stage LED display
- External fresh air supply up to 15% of the nominal air volume possible (sizes 15 to 27)
- Integrated drain pump with delivery head up to 85 cm
- Receiver for infrared remote control can be integrated
- All wired remote controls can be combined
- Automatic restart after power blackout adjustable
Performance data
1-way FLAT cassette SMMSu
-
Airflow
270 - 1000 m³/h -
Dimensions (HxWxD)
150 x 990 x 450 - 150 x 1180 x 450 mm
Cooling
-
Cooling capacity
0,90 - 8,00 kW -
Sound pressure level (low/med/high)
25 - 47 dB(A)
Heating
-
Heating capacity
1,30 - 9,00 kW
