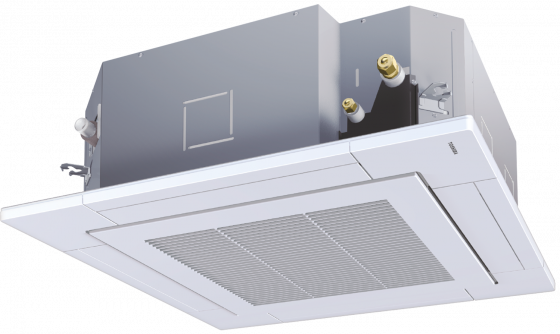

4-way SMART standard cassette SMMSu
HIGH-EFFICIENCY 360° CLASSIC
Highly efficient 4-way cassette for RAV single-room systems for combination with VRF outdoor unit MiNi-SMMS-e, SMMS-e and SHRM-e series. Individual comfort, even for large spaces with high capacity requirements. Available in ten capacity sizes from 2.8 to 16.0 kW.
Highlights
Outstanding efficiency Customizable air distribution features External fresh air supply possible Occupancy-sensor option-
n.A
-
42 - 61 dB(A)
-
n.A
-
42 - 61 dB(A)
Product benefits
4-way SMART standard cassette SMMSu
- Very high energy efficiency
- High-performance heat exchanger
- Self-cleaning function
- Low-noise 5-stage fan
- Individual louver function
- 360° airflow
- Quiet function

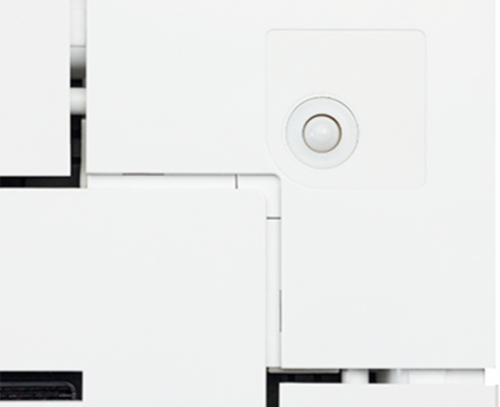

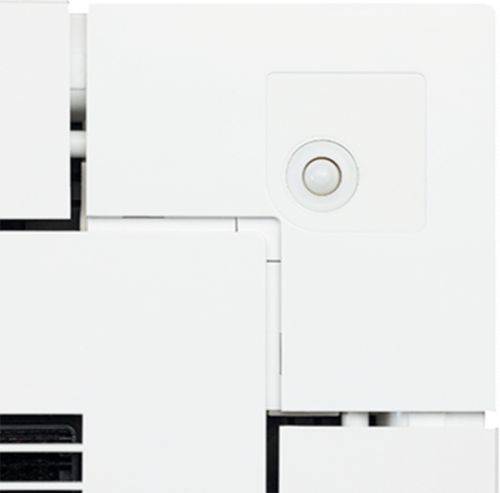

- Occupancy sensor option
- Auto diagnostic system
- Optimum air distribution even in high rooms
- Easy-to-remove, washable dust filter
- Optional WiFi control via smartphone, tablet, or PC
- External fresh air supply possible up to 15% of the nominal airflow
- Integrated drain pump with discharge head up to 85 cm

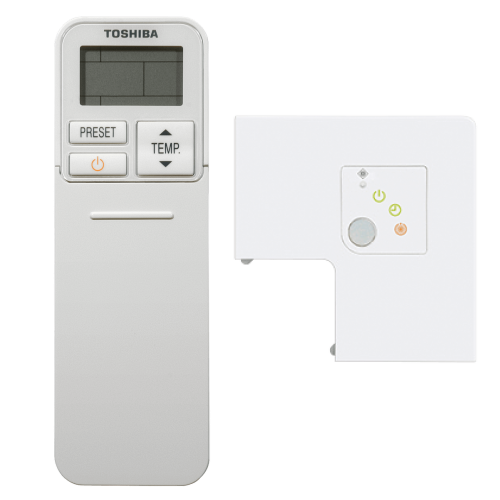

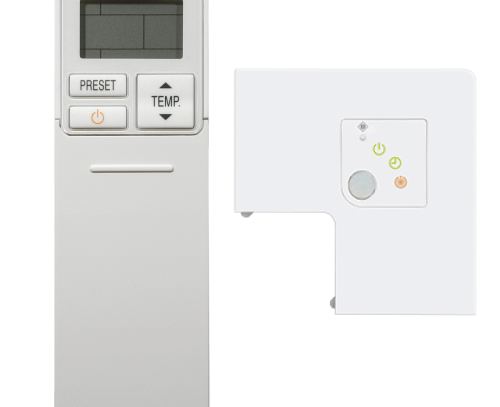

- Receiver for infrared remote control can be integrated
- Can be combined with all wired remote controls
- Additional functions available with remote control RBC-AMSU51-ES
- Automatic restart setting after power outage
Performance data
4-way SMART standard cassette SMMSu
-
Dimensions (HxWxD)
256 x 840 x 840 - 319 x 840 x 840 mm -
Airflow
708 - 2262 m³/h
Cooling
-
Cooling capacity
2,80 - 16,00 kW -
Sound pressure level (low/med/high)
26 - 46 dB(A)
Heating
-
Heating capacity
3,20 - 18,00 kW
