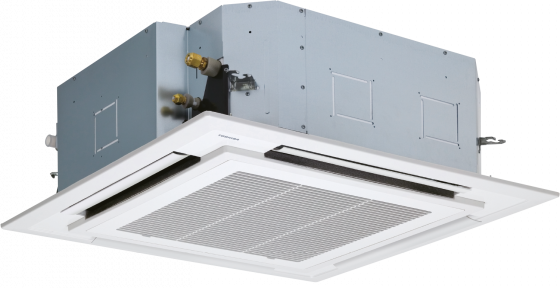

4-way standard cassette SMMSu
THE 360° CLASSIC
4-way standard cassette for combination with VRF outdoor units from the MiNi-SMMS-e, SMMS-e, SMMS-u, and SHRM-e model series. Customized comfort, even for large spaces with high power requirements. Available in ten capacity levels from 2.8 to 16.0 kW.
Highlights

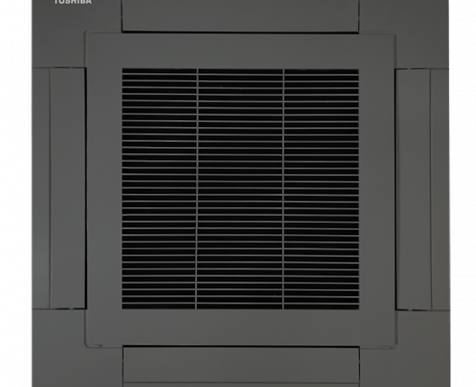

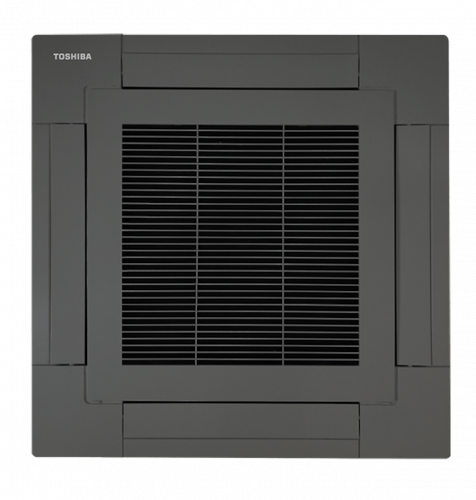

Outstanding efficiency Two panels available for selection External fresh air supply possible-
n.A
-
0 dB(A)
-
n.A
-
n.A
Product benefits
4-way standard cassette SMMSu
- Very high energy efficiency
- Exhaust panel available for wide or direct air flow
- High-performance heat exchanger
- Self-cleaning function
- Low-noise, 3-step fan
- Quiet function
- Auto diagnostic system
- Optimal air distribution, even in high spaces
- Easy-to-remove, washable dust filter
- Optional WiFi control via smartphone, tablet, or PC
- External fresh air supply possible up to 15% of the nominal airflow
- Integrated drain pump with a discharge head up to 85 cm

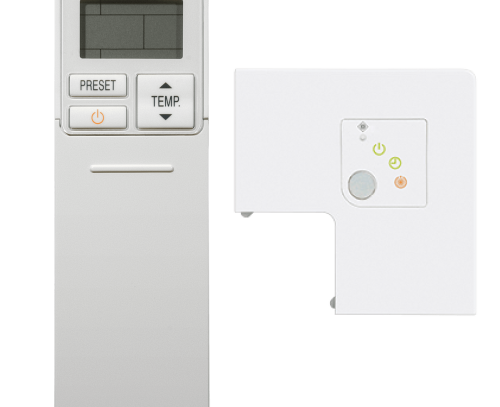

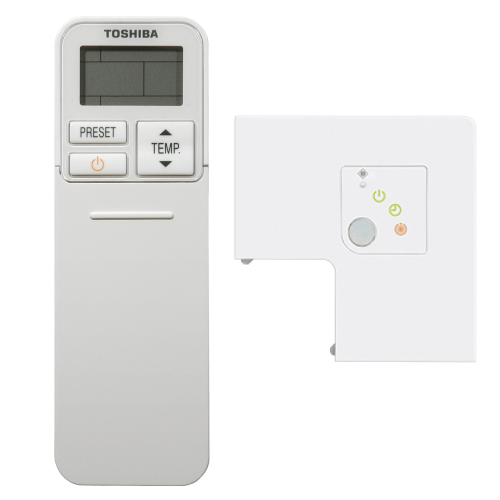

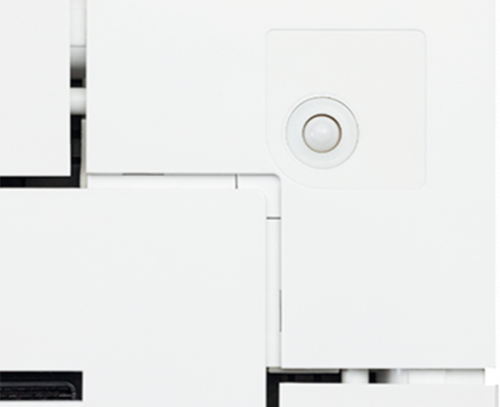

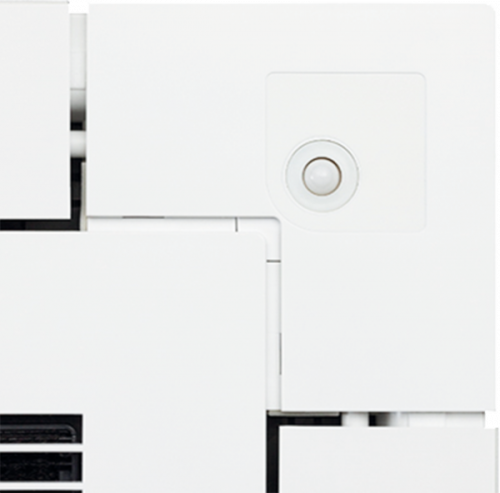

- Receiver for infrared remote control can be integrated
- Can be combined with all wired remote controls
- Automatic restart after power blackout adjustable
Performance data
4-way standard cassette SMMSu
-
Airflow
680 - 2130 m³/h -
Dimensions (HxWxD)
256 x 840 x 840 - 319 x 840 x 840 mm
Cooling
-
Cooling capacity
2,80 - 16,00 kW -
Sound pressure level (low/med/high)
27 - 46 dB(A)
Heating
-
Heating capacity
3,20 - 18,00 kW
