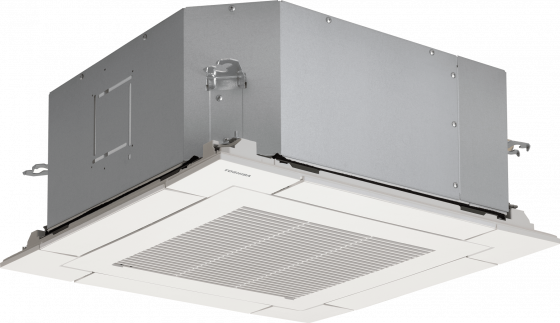

60x60 Slim cassette
360° AIR COMFORT
- Kältemittel R32
4-way SLIM cassette for RAS multi-split systems, for use with additional indoor units on a 2- to 5-room multi-outdoor unit. Slim panel measuring just 62 x 62 cm for a perfect look in the ceiling grid. Perfect for high demands on design and energy efficiency. The optionally add-on occupancy sensor saves energy when there are no people in the room. Required accessories: remote control + panel.
Highlights
Comfort airflow features Flat panel, optionally in pure white or black Remote control and occupancy sensor optional 60x60 Slim cassette, Kältemittel R32-
n.A
-
43 - 52 dB(A)
-
Schallleistungspegel
-
n.A
-
43 - 52 dB(A)
Product benefits
60x60 Slim cassette
- High energy efficiency (up to A+++) for multi-systems
- High-performance heat exchanger
- Particularly high efficiency in the partial load range
- Self-cleaning function
- Low-noise 5-speed fan
- Up to 5 indoor units can be connected to one outdoor unit
- Easily removable, washable dust filter
- Optional WIFI control via iOS or Android smartphone
- Low device height
- Flat air exhaust panel with a height of only 12 mm
- Condensate lifting pump with a discharge head of up to 85 cm integrated
- Receiver for infrared remote control can be integrated
- Automatic restart after a power failure can be set
- Control optionally via APP, infrared or wired remote control
- WIFI control via iOS or Android smartphone (optional)
- COMPACT wired remote control (optional)
- STANDARD wired remote control (optional)
- COMFORT wired remote control (optional)
- COMFORT wired remote control PLUS (optional), also with BLUETOOTH support
- OFF, ON/OFF or weekly timer, depending on remote control
- Automatic mode, Eco mode, Hi Power
- Quiet, Preset, Comfort Sleep
- Occupancy sensor (optional)
- 360° airflow
- Individual louver function
- 4 independently controllable louver flaps
- Optimal air distribution even in high rooms
Performance data
60x60 Slim cassette
-
Dimensions (HxWxD)
256 x 575 x 575 mm
Cooling
-
Cooling capacity
2,70 - 4,50 kW
Heating
-
Heating capacity
4,00 - 5,50 kW
