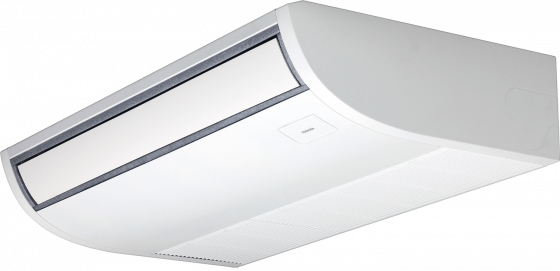

Ceiling unit SL R32
PERFECT AMBIANCE
- Kältemittel R32
Under-ceiling unit for RAV single-room systems for combination with Digital-Inverter, Super-Digital-Inverter, and Digital-Inverter BIG outdoor units for refrigerant R32. Elegant design with rounded edges and a large air control fin for optimal air circulation. Available in seven capacity sizes from 3.6 to 14.0 kW.
Highlights
SL »speed line« feature update Attractive design Low noise level Optimal air distribution in cooling & heating mode Ceiling unit SL R32, Kältemittel R32-
n.A
-
43,00 - 62,00 dB(A)
-
n.A
-
43,00 - 62,00 dB(A)
Product benefits
Ceiling unit SL R32
- Very high energy efficiency
- Optimal temperature distribution right down to the floor in heating mode
- High-performance heat exchanger
- Self-cleaning function
- Low-noise 3-stage fan
- Quiet function
- Auto diagnostic system
- Optimal air distribution, even in high spaces
- Easy-to-remove, washable dust filters

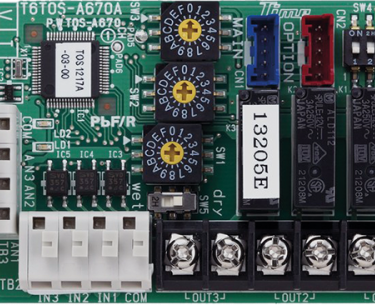

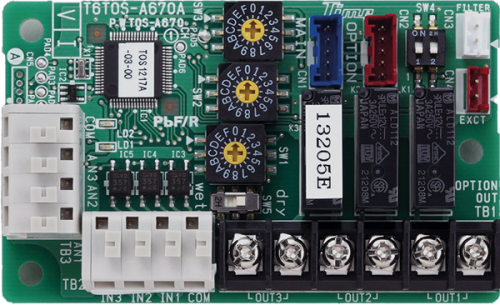

- Additional TCB-PCUC2E board available for external analog & digital control
- Optional WiFi control via smartphone, tablet, or PC
- Easy installation via removable suspension fixtures
- Optional TCB-DP31CE drain pump available

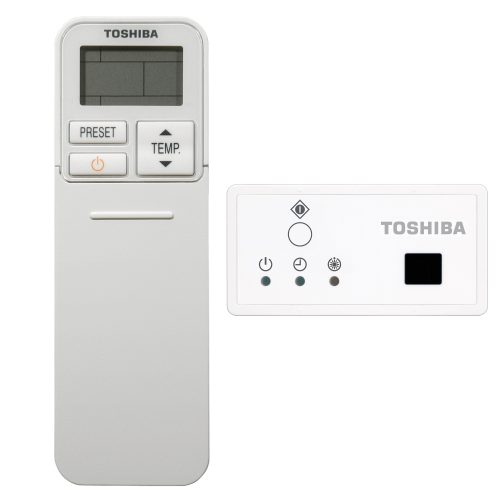

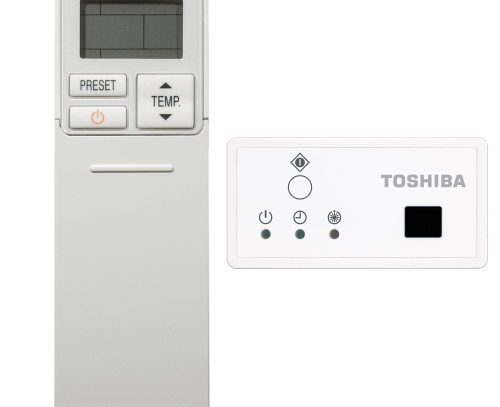

- Receiver for infrared remote control can be integrated

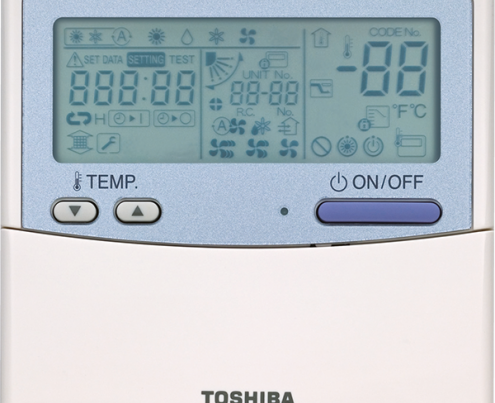

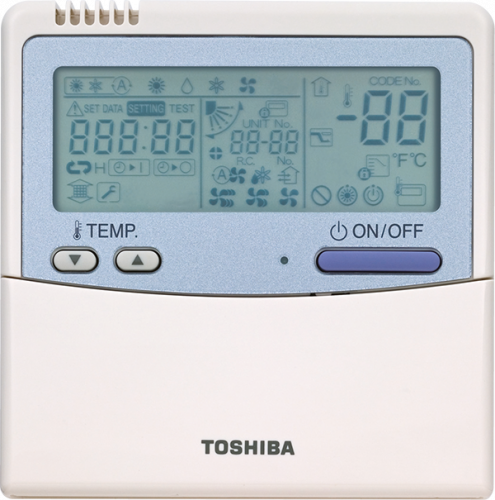

- Can be combined with all cable remote controls
- Can be integrated into VRF control systems via a TCC / TU2C link
- Compatible with TU2C link system bus
- Automatic restart setting after power outage
- Optional redundancy box available
- Redundancy function
- Free-Cooling control
- Support for Secondary Heating
- Air Discharge Temperature Display
- Power Shift
Performance data
Ceiling unit SL R32
-
Airflow
540 - 2040 m³/h -
Dimensions (HxWxD)
235 x 950 x 690 - 235 x 1586 x 690 mm
Cooling
-
Cooling capacity
3,60 - 14,00 kW -
Sound pressure level (low/med/high)
28 - 46 dB(A) -
Energy efficiency class
- A+
Heating
-
Heating capacity
4,00 - 16,00 kW
Facts
Cooling and heating solutions from TOSHIBA
Technical specifications
Set: Indoor and outdoor unit
Capacity, size, specifications – you can find all about the unit you want here.
Make your life easier and save time with our operating instructions.
