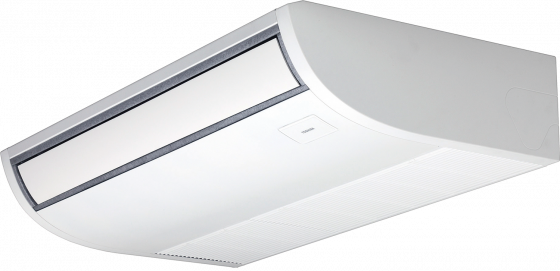

Ceiling unit SMMSu
PERFECT AMBIANCE
Under ceiling unit for combination with VRF outdoor units from the MiNi-SMMS-e, SMMS-e, SMMS-u and SHRM-e model series (size 003 for SMMS-u only). Elegant design with rounded edges and a large air discharge louver flap for optimal air circulation. Available in seven capacity sizes from 4.5 to 16.0 kW.
Highlights
Attractive design Low noise level Optimal air distribution in cooling & heating mode-
n.A
-
0 dB(A)
-
n.A
-
n.A
Product benefits
Ceiling unit SMMSu
- Very high energy efficiency
- Optimal temperature distribution right down to the floor in heating mode
- High-performance heat exchanger
- Self-cleaning function
- Low-noise, 3-step fan
- Quiet function
- Auto diagnostic system
- Optimal air distribution, even in high spaces
- Easy-to-remove, washable dust filters
- Accessry pc-board available for external analog & digital control
- Optional WiFi control via smartphone, tablet, or PC
- Easy installation via removable suspension fixtures
- TCB-DP31CE drain pump optionally available
- Receiver for infrared remote control can be integrated
- Can be combined with all wired remote controls
- Automatic restart after power blackout adjustable
Performance data
Ceiling unit SMMSu
-
Airflow
540 - 2040 m³/h -
Dimensions (HxWxD)
235 x 950 x 690 - 235 x 1586 x 690 mm
Cooling
-
Sound pressure level (low/med/high)
28 - 46 dB(A) -
Cooling capacity
4,50 - 16,00 kW
Heating
-
Heating capacity
5 - 18 kW
