Floor standing unit SL R32
SPACE-SAVING – FOR ANY ROOM
- Kältemittel R32
Floor standing unit for RAV single-room systems for combination with Digital-Inverter, Super-Digital-Inverter, and Digital-Inverter BIG outdoor units for refrigerant R32. Provides optimum air circulation while taking up minimal installation space. Available in six capacity sizes from 5.0 to 14.0 kW.
Highlights
SL »speed line« feature update Perfect air circulation Floor installation - for the easiest installation Integrated leak detection system Floor standing unit SL R32, Kältemittel R32-
n.A
-
51,00 - 67,00 dB(A)
-
n.A
-
51,00 - 67,00 dB(A)
Product benefits
Floor standing unit SL R32
- High energy efficiency
- High-performance heat exchanger
- Self-cleaning function
- Low-noise 3-stage fan
- Quiet function
- Auto diagnostic system
- Optimal air distribution, even in large spaces
- Easy-to-remove, washable dust filters
- Additional TCB-PCUC2E board available for external analog & digital control
- Integrated leak detection system simplifies EN378 conformance

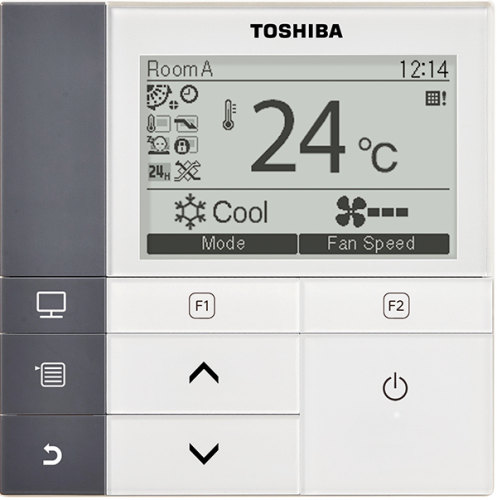

- Can be combined with all wired remote controls
- Can be integrated into VRF control systems via a TCC / TU2C link
- Compatible with TU2C link system bus
- Automatic restart after power blackout
- Optional redundancy box available
- Redundancy function
- Free-Cooling control
- Support for Secondary Heating
- Air Discharge Temperature Display
- Power Shift
Performance data
Floor standing unit SL R32
-
Airflow
600,00 - 1760,00 m³/h -
Dimensions (HxWxD)
1750 x 600 x 210 - 1750 x 600 x 390 mm
Cooling
-
Cooling capacity
5,00 - 14,00 kW -
Sound pressure level (low/med/high)
37,00 - 53,00 dB(A)
Heating
-
Heating capacity
5,30 - 16,00 kW
