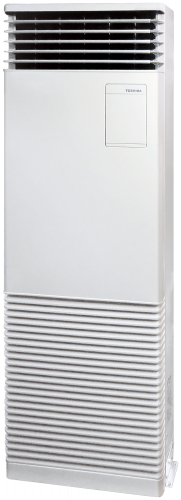

Floor unit
SPACE-SAVING &NDASH, FOR ANY ROOM
- Kältemittel R32
Floor standing unit for RAV single-room systems for combination with Digital Inverter, Super Digital Inverter, and BIG Digital Inverter outdoor units for refrigerant R32 or R410A. Provides optimum air circulation while taking up minimal installation space. Available in five power levels from 5.0 to 14.0 kW.
Highlights
Perfect air circulation Plug & Play with integrated comfort remote control Integrated leak detection system Floor unit, Kältemittel R32-
A++ - B
-
52 - 67 dB(A)
Product benefits
Floor unit
- High energy efficiency (up to A++)
- Energy monitoring with Super Digital Inverter outdoor units
- High-performance heat exchanger
- Self-cleaning function
- Low-noise 3-stage fan
- Quiet function
- Auto diagnostic system
- Compatible with R32 or R410A outdoor units
- Optimal air distribution, even in large spaces
- Easy-to-remove, washable dust filters
- Additional TCB-PCUC2E board available for external analog & digital control
- RBC-AMS55E-ES comfort remote control integrated
- Integrated leak detection system simplifies EN378 conformance
- Can be combined with all wired remote controls
- Can be integrated into VRF control systems via a TCC link
- Automatic restart after power blackout
- Optional redundancy box available
Performance data
Floor unit
-
Luftmenge
0 - 1760 m³/h -
Abmessungen (HxBxT)
1700 x 600 x 210 - 1750 x 600 x 390 mm
Cooling
-
Kühlleistung
5 - 14 kW -
Schalldruckpegel (low/med/high)
38 - 53 dB(A)
Heating
-
Heizleistung
5 - 16 kW
