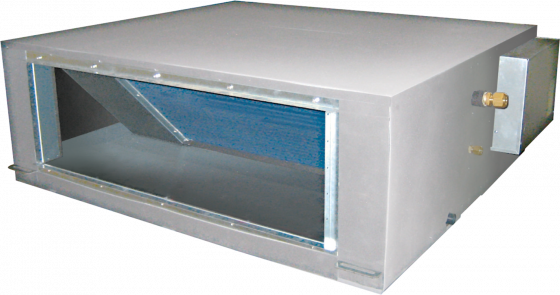

Fresh-air duct unit SMMSu
FOR FRESH AIR PRECONDITIONING
Fresh-air duct unit for combination with VRF outdoor units from the SMMS-e and SMMS-u model series (sizes 112 and 128 for SMMS-u only). Pre-heating or cooling function in combination with other indoor units. Available in five capacity levels from 14.0 to 40.0 kW.
Highlights
Perfect solution for additional inflow of fresh air Pre-heating and pre-cooling function Can be used in combination with other VRF indoor units-
n.A
-
0 dB(A)
-
n.A
-
n.A
Product benefits
Fresh-air duct unit SMMSu
- High energy efficiency
- Can be integrated unseen into false ceilings
- Self-cleaning function
- Low-noise 5-step fan
- External, static pressure can be set up to 200 Pa
- Auto diagnostic system
- 100% fresh air processing
- Can be regulated from +16 to +27°C in cooling and heating mode
- Wide operating range: air-intake temperatures from -10°C to +46°C
- Can be realized with up to 30% of total system output
- Diversity from 80% to 110%
- Air intake from behind
- Customized external air filter settings
- TCB-DP40DFP-E drain pump optionally available
- External receiver kit for infrared remote control possible
- Can be combined with all cable remote controls
- Cannot be combined with VN-HEXE or hot water module
- Automatic restart after power blackout adjustable
Performance data
Fresh-air duct unit SMMSu
-
Airflow
760 - 3060 m³/h -
Dimensions (HxWxD)
327 x 1430 x 750 - 477 x 1430 x 900 mm
Cooling
-
Cooling capacity
14 - 40 kW -
Sound pressure level (low/med/high)
31 - 42 dB(A)
Heating
-
Heating capacity
8,90 - 25,20 kW
