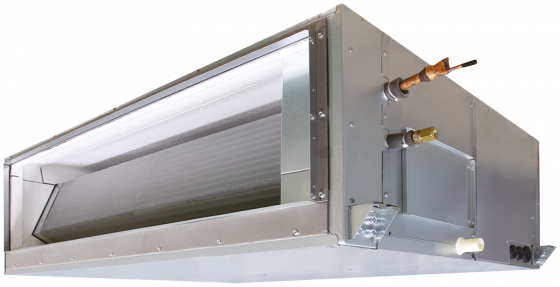

High-pressure duct unit SMMSu
WITH FULL POWER
High-pressure duct unit for combination with VRF outdoor units from the MiNi-SMMS-e, SMMS-e, SMMS-u, and SHRM-e model series. Due to the high static pressure, this unit is best suited for large spaces. Available in eight capacity sizes from 5.6 to 28.0 kW.
Highlights
High external static pressure Compact & light chassis Optimal air distribution possible-
n.A
-
0 dB(A)
-
n.A
-
n.A
Product benefits
High-pressure duct unit SMMSu
- High-performance heat exchanger
- Self-cleaning function
- Low-noise, 3-step fan
- External, static pressure can be set up to 250 Pa
- Auto diagnostic system
- Air intake from behind
- Optimal for combination with textile air ducts
- Customized external air filter settings
- Optional WiFi control via smartphone, tablet, or PC
- Integrated drain pump with discharge head of up to 85 cm (5.6 to 16.0 kW)
- TCB-DP40DPE drain pump optionally available (22.4 & 28 kW)
- External receiver kit for infrared remote control possible
- Can be combined with all wired remote controls
- Automatic restart after power blackout adjustable
Performance data
High-pressure duct unit SMMSu
-
External static pressure
50 - 250 Pa -
Airflow
900 - 4800 m³/h -
Dimensions (HxWxD)
298 x 1000 x 750 - 448 x 1400 x 900 mm
Cooling
-
Cooling capacity
5,60 - 28,00 kW -
Sound pressure level (low/med/high)
31 - 46 dB(A)
Heating
-
Heating capacity
6,30 - 31,50 kW
