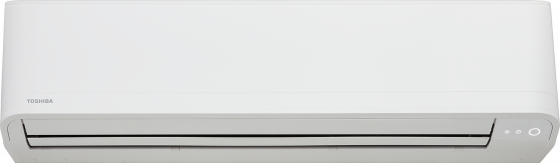

High-wall unit 10 kW
COMFORT ALLROUNDER
- Kältemittel R32
High-wall unit for RAV single-room systems for combination with Digital Inverter, Super Digital Inverter, and BIG Digital Inverter outdoor units for refrigerant R32. With their unobtrusive design, these high-wall units are ideal for offices, shops, hotels, plant rooms, restaurants, etc.
Highlights
Modern design Comfort features taken from the domestic sector Preset, Quiet, Hi Power, Comfort Sleep Infrared remote control included High-wall unit 10 kW, Kältemittel R32-
n.A
-
56,00 - 64,00 dB(A)
-
n.A
-
56,00 - 64,00 dB(A)
Product benefits
High-wall unit 10 kW
- Suitable for 24-hour continual operation
- High energy efficiency
- High-performance heat exchanger
- Self-cleaning function dries the heat exchanger after operation
- Low-noise 5-stage fan
- Auto diagnostic system
- Large air control fin
- Optimal air distribution, even in large spaces
- Easy-to-remove, washable dust filters
- "Easy Cleaning" design
- Infrared remote control included
- 24-hour timer
- Automatic mode
- Hi Power
- Quiet
- Preset
- Comfort Sleep
- Optional WiFi control via smartphone, tablet, or PC
- Can be combined with all cable remote controls
- Integrated TCC link interface
- Can be integrated into VRF control systems via a TCC link
- Automatic restart setting after power outage
- Optional redundancy box available
- Refrigerant lines can be connected from 3 sides
Performance data
High-wall unit 10 kW
-
Airflow
1180,00 - 1610,00 m³/h -
Dimensions (HxWxD)
348 x 1200 x 280 mm
Cooling
-
Energy efficiency class
A++ -
Cooling capacity
9,50 - 10,00 kW -
Sound pressure level (low/med/high)
41,00 - 49,00 dB(A)
Heating
-
Heating capacity
11,20 kW
Facts
