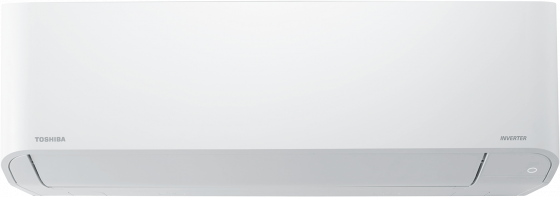

High-wall unit SL R32
COMFORT ALLROUNDER
- Kältemittel R32
High-wall unit for RAV single-room systems for combination with Digital-Inverter CLASSIC, Digital-Inverter, Super-Digital-Inverter, and Digital-Inverter BIG outdoor units for refrigerant R32. With their unobtrusive design, these high-wall units are ideal for offices, shops, hotels, technical cooling, restaurants, etc. Available in six capacity sizes from 2.5 to 10.0 kW.
Highlights
SL »speed line« feature update Modern, compact design Comfort features taken from HOME sector Preset, Quiet, Hi Power, Comfort Sleep Infrared remote control included High-wall unit SL R32, Kältemittel R32-
n.A
-
44,00 - 64,00 dB(A)
-
n.A
-
44,00 - 64,00 dB(A)
Product benefits
High-wall unit SL R32
- Suitable for 24-hour continuous operation
- High energy efficiency
- High-performance heat exchanger
- Self-cleaning function dries the heat exchanger after operation
- Low-noise 5-stage fan
- Auto diagnostic system
- Optimal air distribution, even in large spaces
- Easy-to-remove, washable dust filters
- "Easy Cleaning" design
- Optional WiFi control via smartphone, tablet, or PC
- Infrared remote control included
- 24-hour timer
- Automatic mode
- Hi Power
- Quiet
- Preset
- Comfort Sleep
- Can be combined with all cable remote controls
- Integrated TCC / TU2C link interface
- Can be integrated into VRF control systems via link
- Compatible with TU2C link system bus
- Automatic restart setting after power outage
- Optional redundancy box available
- Refrigerant lines can be connected from 3 sides
- Redundancy function
- Free-Cooling control
- Support for Secondary Heating
- Air Discharge Temperature Display
- Power Shift
Performance data
High-wall unit SL R32
-
Airflow
450,00 - 1610,00 m³/h -
Dimensions (HxWxD)
293 x 798 x 230 - 350 x 1200 x 280 mm
Cooling
-
Energy efficiency class
A++ - A+ -
Cooling capacity
2,50 - 10,00 kW -
Sound pressure level (low/med/high)
29,00 - 49,00 dB(A)
Heating
-
Heating capacity
3,40 - 11,20 kW
