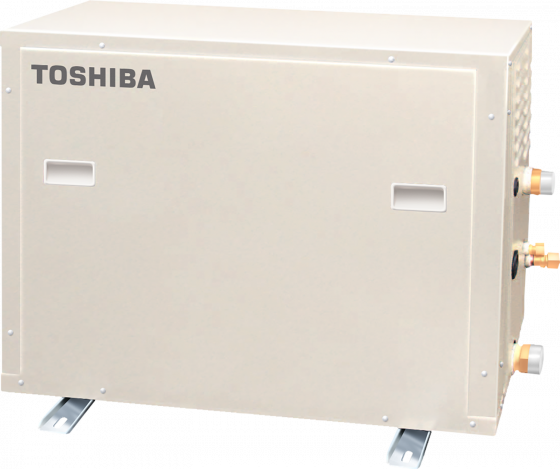

Hot water module
HOT WATER PREPARATION UP TO +82°C
Using hot water preparation for high-temperature systems, highly efficient room heating or domestic hot water generation is possible. For combination with VRF outdoor units from the SHRM-e model series. Available with 14.0 kW output.
Highlights
Efficient preparation of hot water for room heating + domestic hot water Hot water preparation up to +82°C via 2-step cascade Compatible with SHRM-e outdoor units-
n.A
-
n.A
-
n.A
-
n.A
Product benefits
Hot water module
- Water outlet temperature +50 to +82°C
- Supply water temperature control
- Outdoor temperature operating range -25°C to 40°C db (-20°C to +28°C wb)
- Cascade with inverter-controlled twin-rotary compressor
- Can be combined with series 4 or multi-port flow boxes
- Connectable capacity with standard indoor units: up to 200%
- Water pump, dirt trap & shutoff valves must be supplied externally
- Not suitable for connection to BMS systems
- Fresh-air duct unit & VN-HEXE heat exchanger cannot be connected in the same system
Performance data
Hot water module
-
Water flow rate (min.)
2 m³/h -
Dimensions (HxWxD)
700 x 900 x 320 mm
Heating
-
Heating capacity
14 kW
