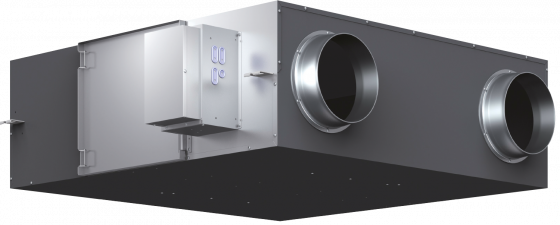

HRV heat exchanger
HIGHLY EFFICIENT FRESH AIR SUPPLY
Cross-flow heat exchanger for stand-alone operation or for integration into VRF systems. Enables heat recovery from the conditioned room air with an enthalpy exchange efficiency of up to 88%. Available in 9 performance sizes from 150 to 2000 m3/h.
Highlights
Air-to-air cross-flow heat exchanger Enthalpy exchange efficiency of up to 88% Free cooling possible Standard air filter integrated Air-Quality CO2 / PM sensor optional-
n.A
-
40 - 60 dB(A)
-
n.A
-
40 - 60 dB(A)
Product benefits
HRV heat exchanger
- Air-to-air cross-flow heat exchanger for stand-alone operation
- Suitable for controlled residential ventilation and for commercial use
- Easily removable & washable heat exchanger element
- New chassis in four sizes
- DC fan motor
- Wide operating temperature range
- Enthalpy exchange efficiency of up to 88%
- Complies with ENTR LOT 6, Tier 2 requirements
- An optional CO2 / PM sensor offers fan speed control adapted to the state of the indoor air quality
- Standard air filter integrated
- Optional high-performance air filter
- Ventilation control screen with RBC-AMSU52-E / AWSU52-E remote control
- Display information on indoor air quality, temperatures and humidity
- Convenient operation of all ventilation functions
- The DC motor realizes flexible air volume management as well as automatic, stable air volume adjustment.
- An electric air flap on the fresh air inlet and a wind protection reset flap on the exhaust air side prevent outside air from entering when the unit is switched off.
- Delayed operation: The operation of the HRV ventilation unit is delayed by 10 to 60 minutes in 10-minute increments.
- 24-hour ventilation: The HRV ventilation unit operates continuously, even when the air conditioning system is turned off.
- Nighttime heat removal: removes hot air from the room in bypass mode and reduces the cooling load in the morning.
- Automatic ventilation mode: The ventilation mode is automatically switched (cooling, heating, drying, fan or temperature setting) depending on the operating status of the air conditioning system and the information from the room and outside air temperature sensors in the unit.
Performance data
HRV heat exchanger
-
Airflow
73 - 2000 m³/h -
External static pressure
6 - 170 Pa -
Dimensions (HxWxD)
778 x 735 x 278 - 1130 x 1230 x 772 mm
Cooling
-
Sound pressure level (low/med/high)
20 - 58 dB(A)
