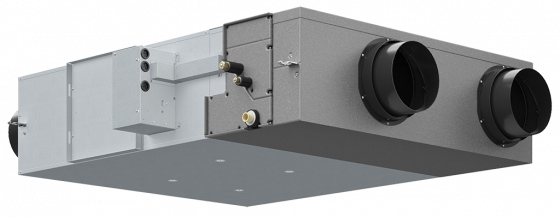

HRV heat exchanger with DX-Register
HIGHLY EFFICIENT FRESH AIR SUPPLY
Cross-flow heat exchanger with DX coil for heating and cooling operation, for integration into VRF systems according to Selection Tool design software. Enables heat recovery from the conditioned room air with an enthalpy exchange efficiency of up to 86%. Available in three performance sizes from 500 to 1000 m3/h.
Highlights
Air-to-air cross-flow heat exchanger with DX coil Enthalpy exchange efficiency of up to 86% Free cooling possible Standard air filter integrated Air-Quality CO2 / PM sensor optional-
n.A
-
38 - 58 dB(A)
-
n.A
-
38 - 58 dB(A)
Product benefits
HRV heat exchanger with DX-Register
- Air-to-Air cross-flow heat exchanger with DX register for heating & cooling
- Compatible with SMMS-u/-e, SHRM-e/-a, MiNi SMMS-e MCY-MHP4/5/604HS8-E
- Suitable for controlled residential ventilation and for commercial use
- Easily removable & washable heat exchanger element
- Available in three performance sizes
- DC fan motor
- Wide operating temperature range
- Enthalpy exchange efficiency of up to 86%
- Complies with ENTR LOT 11 requirements
- An optional CO2 / PM sensor offers fan speed control adapted to the state of the indoor air quality
- Standard air filter integrated
- Optional high-performance air filter
- Ventilation control screen with RBC-AMSU52-E / AWSU52-E remote control
- Display information on indoor air quality, temperatures and humidity
- Convenient operation of all ventilation functions
- The DC motor realizes flexible air volume management as well as automatic stable air volume adjustment.
- An electric air flap on the fresh air inlet and a wind protection reset flap on the exhaust air side prevent outside air from entering when the unit is switched off.
- Delayed operation: The operation of the HRV ventilation unit is delayed by 10 to 60 minutes in 10-minute increments.
- 24-hour ventilation: The HRV ventilation unit operates continuously, even when the air conditioning system is turned off.
- Nighttime heat removal: removes hot air from the room in bypass mode and reduces the cooling load in the morning.
- Automatic ventilation mode: The ventilation mode is automatically switched (cooling, heating, drying, fan or temperature setting) depending on the operating status of the air conditioning system and the information from the room and outside air temperature sensors in the unit.
Performance data
HRV heat exchanger with DX-Register
-
Airflow
196 - 865 m³/h -
External static pressure
27 - 220 Pa -
Dimensions (HxWxD)
1360 x 1020 x 386 - 1593 x 1230 x 386 mm
Cooling
-
Cooling capacity
4,10 - 8,25 kW -
Sound pressure level (low/med/high)
23 - 43 dB(A)
Heating
-
Heating capacity
5,53 - 10,92 kW
