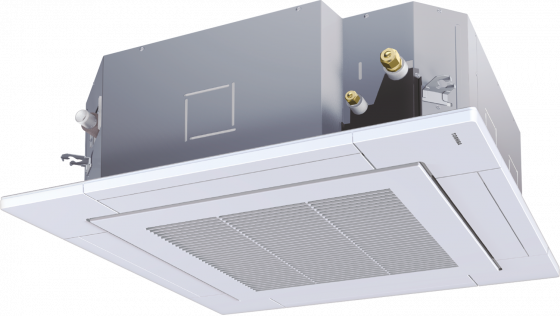

SMART cassette SL R32
HIGH-EFFICIENCY 360° CLASSIC
- Kältemittel R32
Highly efficient 4-way cassette for RAV single-room systems for combination exclusively with Super-Digital-Inverter outdoor units for refrigerant R32. Individual comfort, even for large spaces with high capacity requirements. Available in four capacity sizes from 5.0 to 12.5 kW.
Highlights
SL »speed line« feature update Outstanding efficiency Customizable air distribution features External fresh air supply possible Occupancy sensor option SMART cassette SL R32, Kältemittel R32-
n.A
-
43,00 - 61,00 dB(A)
-
n.A
-
43,00 - 61,00 dB(A)
Product benefits
SMART cassette SL R32
- Very high energy efficiency
- High-performance heat exchanger
- Self-cleaning function
- Low-noise 5-stage fan
- Individual louver function
- 360° airflow
- Occupancy sensor option
- Auto diagnostic system
- Optimal air distribution up to room height of 4.5 m
- Easy-to-remove, washable dust filter
- Additional TCB-PCUC2E board available for external analog & digital control
- Optional WiFi control via smartphone, tablet, or PC
- External fresh air supply possible up to 15% of the nominal airflow
- Integrated drain pump with discharge head up to 85 cm
- Receiver for infrared remote control can be integrated
- Can be combined with all cable remote controls
- Can be integrated into VRF control systems via a TCC / TU2C link
- Compatible with TU2C link system bus
- Automatic restart setting after power outage
- Optional redundancy box available
- Redundancy function
- Free-Cooling control
- Support for Secondary Heating
- Air Discharge Temperature Display
- Draft Prevention Control
- Power Shift
Performance data
SMART cassette SL R32
-
Airflow
750,00 - 2250,00 m³/h -
Dimensions (HxWxD)
319 × 840 × 840 - 319 x 840 x 840 mm
Cooling
-
Energy efficiency class
- A++ -
Cooling capacity
5,00 - 12,50 kW
Heating
-
Heating capacity
5,60 - 14,00 kW
