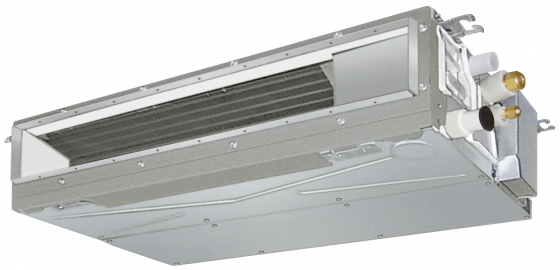

SSD Super Slim Duct
SUPER SLIM DUCT UNIT SMMSU
Flat duct unit for combination with VRF outdoor units of the Mini-SMMS-e, SMMS-e, SMMS-u and SHRM-e series (size 003 for SMMS-u only). Ultra-flat design with top energy efficiency values. Available in nine capacity levels from 0.9 to 8.0 kW.
Highlights
Compact & flat Optimal air distribution possible External fresh air supply possible-
n.A
-
42 - 61 dB(A)
-
n.A
-
42 - 61 dB(A)
Product benefits
SSD Super Slim Duct
- High energy efficiency
- Can be invisibly integrated in false ceilings
- Self-cleaning function
- Whisper 5-step fan
- External static pressue adjustable up to 50 Pa
- Auto diagnostic system
- under air-intake or back air-intake possible
- Washable long-life dust filter integrated
- Optional WIFI control via smartphone, tablet, PC
- Lowest installation height of only 210 mm
- External fresh air supply up to 15% of the nominal air volume possible
- Integrated drain pump with delivery head up to 35 cm
- Receiver for infrared remote control can be integrated
- All wired remote controls can be combined
- Automatic restart after power blackout adjustable
Performance data
SSD Super Slim Duct
-
Dimensions (HxWxD)
210 x 700 x 450 - 210 x 1100 x 450 mm -
External static pressure
10 - 50 Pa -
Airflow
360 - 1140 m³/h
Cooling
-
Cooling capacity
0,90 - 8,00 kW -
Sound pressure level (low/med/high)
25 - 37 dB(A)
Heating
-
Heating capacity
1 - 9 kW
