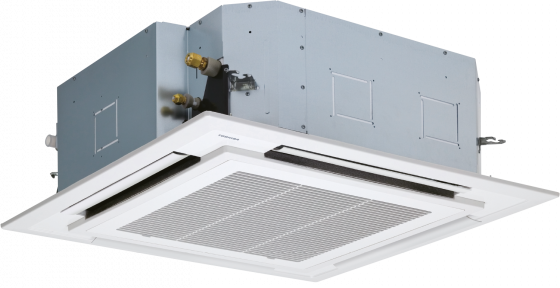

Standard cassette R32/R410A
THE 360° CLASSIC
- Kältemittel R32
Four-way standard cassette for RAV single-room systems for combination with Digital Inverter, Super Digital Inverter, and BIG Digital Inverter outdoor units for refrigerant R32 or R410A. Individual comfort, even for large spaces with high power requirements. Available in four power levels from 5.0 to 12.0 kW.
Highlights
Outstanding efficiency Two panels available for selection External fresh air supply possible Standard cassette R32/R410A, Kältemittel R32-
n.A
-
43,00 - 60,00 dB(A)
-
n.A
-
43,00 - 60,00 dB(A)
Product benefits
Standard cassette R32/R410A
- Extremely high energy efficiency (up to A+++)
- Exhaust panel available for wide or direct air flow
- High-performance heat exchanger
- Self-cleaning function dries the heat exchanger after operation
- Low-noise 3-stage fan
- Quiet function
- Auto diagnostic system
- Compatible with R32 or R410A outdoor units
- Optimal air distribution up to room height of 4.6 m
- Easy-to-remove, washable dust filter
- Optional WiFi control via smartphone, tablet, or PC
- External fresh air supply possible up to 15% of the nominal airflow
- Integrated drain pump with discharge head up to 85 cm
- Receiver for infrared remote control can be integrated
- Can be combined with all cable remote controls
- Can be integrated into VRF control systems via a TCC link
- Automatic restart setting after power outage
- Optional redundancy box available
Performance data
Standard cassette R32/R410A
-
Dimensions (HxWxD)
319 × 840 × 840 - 319 x 840 x 840 mm -
Airflow
780,00 - 2130,00 m³/h
Cooling
-
Cooling capacity
5,00 - 14,00 kW -
Energy efficiency class
- A+ -
Sound pressure level (low/med/high)
28,00 - 45,00 dB(A)
Heating
-
Heating capacity
5,30 - 16,00 kW
