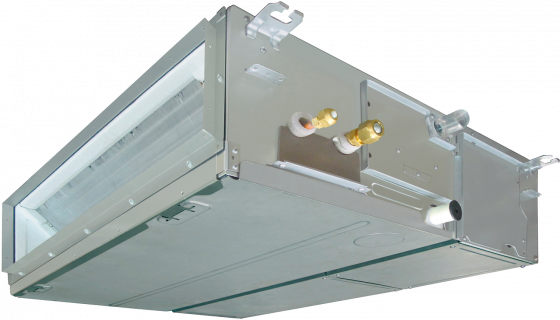

Standard duct unit SMMSu
INVISIBLE CLASSIC
Standard duct unit for combination with VRF outdoor units of the MiNi-SMMS-e, SMMS-e, SMMS-u, and SHRM-e model series. Air can be supplied into the room discretely with the lowest speed via one or more air outlets. Available in twelve capacity levels from 1.7 to 16.0 kW.
Highlights
Very quiet Optimal air distribution possible External fresh air supply possible-
n.A
-
n.A
-
n.A
-
n.A
Product benefits
Standard duct unit SMMSu
- High energy efficiency
- Can be integrated unseen into false ceilings
- Self-cleaning function
- Low-noise, 3-step fan
- External, static pressure can be set up to 120 Pa
- Auto diagnostic system
- A flanged collar connection is available for the exhaust
- Air intake possible from below or behind
- Washable, long-life dust filter
- Optional WiFi control via smartphone, tablet, or PC
- Low unit overall height of only 275 mm
- External fresh air supply possible up to 15% of the nominal airflow
- Integrated drain pump with a discharge head up to 85 cm
- External receiver kit for infrared remote control possible
- Can be combined with all cable remote controls
- Automatic restart after power blackout adjustable
Performance data
Standard duct unit SMMSu
-
External static pressure
30 - 120 Pa -
Dimensions (HxWxD)
275 x 700 x 750 - 275 x 1400 x 750 mm -
Airflow
360 - 2350 m³/h
Cooling
-
Cooling capacity
1,70 - 16,00 kW -
Sound pressure level (low/med/high)
23 - 40 dB(A)
Heating
-
Heating capacity
1,90 - 18,00 kW
