Exhaust air valve kit
TEMPERATURE-CONTROLLED EXHAUST AIR
Valve kit for exhaust temperature control for integrating external DX heat exchangers into ventilation systems. The system requires master/follower control units and at least one PMV valve kit. For combination with VRF outdoor units from the MiNi-SMMS-e, SMMS-e, and SHRM-e model series.
Highlights
Highly efficient connection of third-party heat exchangers Master kit up to 28 kW, follower combinations up to 168/178 kW Additional VRF indoor units can also be connected-
n.A
-
0 dB(A)
Product benefits
Exhaust air valve kit
- Connection-ready, plug & play kit
- Heating and cooling function for on-site AHUs
- Connection of air curtains possible
- Parallel operation up to 168/178 kW possible
- Optional analog interface available
- Optional control via Modbus possible
- Control range of nominal cooling capacity 50 to 100%
- Simple system design with DesignAIRS software
- Three valve kits available: up to 8, 14, and 28 kW (cooling)
- External DX registers are designed in the counter-current principle for R410A
- Optimal evaporating temperature (cooling) +6.5°C
- Optimal condensation temperature (heating) +52°C
- Air supply application limits (cooling) +15°C(wb)/+18°C(db) to +24°C(wb)/+32°C(db)
- Air supply application limits (heating) +15°C(db) to +28°C(db)

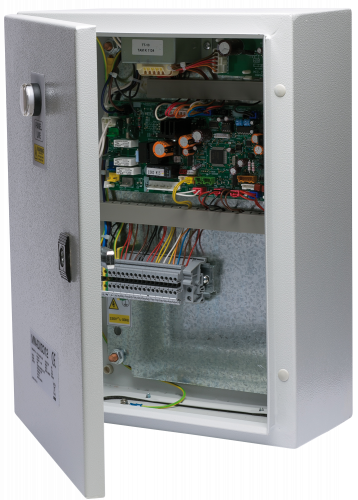

- Control unit contains all sensors with fixing material
- Standard external ON/OFF available
- Standard operating and malfunction notification available
- Cannot be used to generate cold or hot water
- Supply air temperature regulation/min. limit not possible
- Cable remote control required for commissioning
Performance data
Exhaust air valve kit
-
Luftmenge
720 - 5040 m³/h
Cooling
-
Kühlleistung
5,60 - 168,00 kW
Heating
-
Heizleistung
6,30 - 178,00 kW
